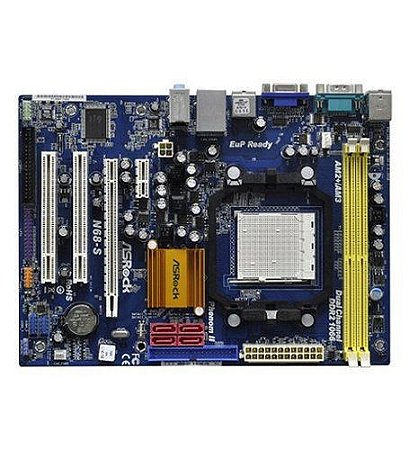

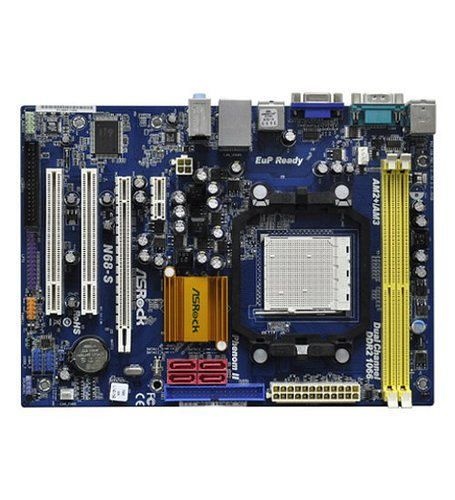

Placa Mae Asrock N68S3-FX AM3+ s/v/r DDR3 Micro ATX

Peso do Produto: 1,20Kg

- Support up to 95W Socket AM3+ processors
- Support up to 95W Socket AM3 processors: AMD Phenom? II X6 / X4 / X3 / X2 (except 920 / 940) / Athlon II X4 / X3 / X2 / Sempron processors
- Supports 8-Core CPU
Chipset - NVIDIA® GeForce 7025 / nForce 630a
- Dual Channel DDR3 memory technology
- 2 x DDR3 DIMM slots
- Supports DDR3 1600/1333/1066/800 non-ECC, un-buffered memory
- Max. capacity of system memory: 8GB*
video on board - - Integrated NVIDIA® GeForce 7025 graphics
audio on board - 5.1 CH HD Audio (VIA® VT1705 Audio Codec)
rede Realtek PHY RTL8201EL
- Speed: 10/100 Ethernet
1 x PCI Express x16 slot
- 1 x PCI Express x1 slot
- 2 x PCI slots
- 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 0+1, RAID 5 and JBOD), NCQ and "Hot Plug" functions
- 1 x ATA133 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x Print Port header
- CPU/Chassis FAN connector
- 24 pin ATX power connector
- 4 pin 12V power connector
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
I/O Panel
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Serial Port: COM1
- 1 x VGA Port
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack: Line in / Front Speaker / Microphone
Micro ATX Form Factor: 9.6-in x 7.0-in, 24.4 cm x 17.8 cm
