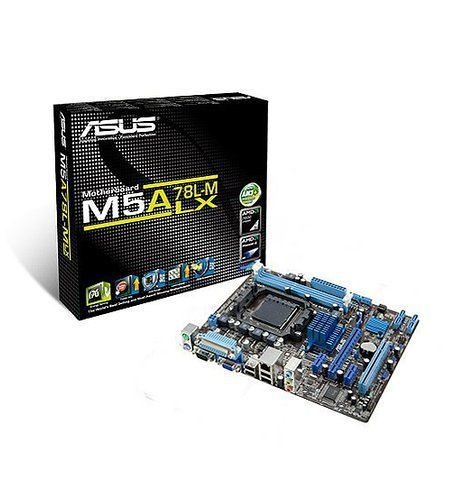

Placa Mae Asus M5A78L-M LX/BR AM3+ s/v/r DDR3 MicroATX

Peso do Produto: 0,84Kg

AMD® Socket AM3+ for FX /PhenomII /AthlonII /Sempron 100 Series Processors
Support Cool 'n' Quiet Technology
Supports CPU up to 95W
*32nm AM3+ CPU is supported by BIOS version0401 and later
AMD 760G(780L) / SB710
Up to 5200 MT/s HyperTransport 3.0
2 x DIMM, max. 8GB, DDR3 1866 (O.C.) /1600 (O.C.) /1333 /1066 MHz, ECC and non-ECC, un-buffered memory
Dual Channel memory architecture
*Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.
**AMD® FX Series CPU on this motherboard supports up to DDR3 1866MHz as its standard memory frequency.
**AMD® 100 and 200 series CPU support up to DDR3 1066MHz.
** Refer to www.asus.com or user manual for Memory QVL (Qualify Vendor List)
Integrated ATI Radeon 3000
Maximum shared memory of 1 G
Supports RGB with max. resolution 2048 x 1536 (@75Hz)
Supports Microsoft® DirectX 10
Hybrid CrossFireX Support (For Windows Vista or later versions)
*Refer to www.amd.com for the Hybrid CrossFireX selected GPUs.
1 x PCIe x16
2 x PCIe x1
1x PCI
6x Serial ATA 3Gb/s supporting RAID 0, RAID 1,RAID 10 and JBOD
RTL8111E PCIe Gb LAN
ALC887 8-CH AUDIO CODEC
* Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
10 USB2.0/1.1 ports (6 ports at mid-board, 4 ports at back panel)
mATX (24.4cm x 20.3cm)
